1.USe high performance LED,CRI>80/90
2.Aluminum heat sink and unique Die casting heat sink design ensures good heat dissipation.
3.LED source Osram or San'an can be optional.
4.Driver brand can be optional
5.Application: Direct replacement for luminaires with compact fluorecent lamps,general illumination,public areas,stairways,corridors,foyers,shops
Item No. | IBSP105 |
Adjustable | No |
Wattage | 1W/3W/5W/7W |
CRI | 80/90 |
CCT | 2700K/3000K/3500K/4000K/5000K/5700K/6500K |
Beam angle | 10/24/38 |
Lumen | 85lm/255lm/595lm |
Finish | Matt white trim |
IP rating | IP20 |
Material | Die-casting alu.trim and heatsink,PMMA lens |
Driver | Constant current remote LED driver included |

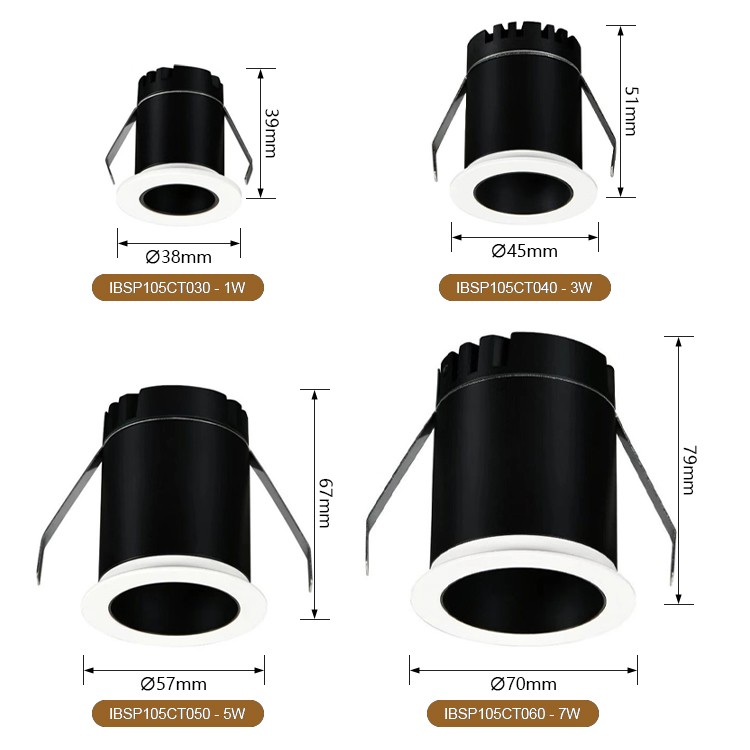

Product Size | Φ35*H40mm for 1W Φ45*H50mm for 3W Φ55*H60mm for 5W Φ68*H54mm for 7W Φ45*H54mm for 3W Φ57*H75mm for 5W Φ68*H85mm for 7W |
Cutout size | Φ30mm for 1W Φ40mm for 3W Φ50mm for 5W Φ60mm for 7W Φ40mm for 3W Φ50mm for 5W Φ60mm for 7W |
LED source | COB, OSRAM |
Input Voltage | 220-240vac/100-240vac |
Diming | Non Dim/Triac/0-10V/Dali Dim |
